Iris diaphragm mechanism Model 3D

$5.00
Licencja:
Iris diaphragm mechanism Model 3D
$ 5.00
Usuń to! Dodaj zakładkę przy tym produkcie
  • Dostępne formaty:
    Dowolna konwersja formatu
    Agisoft Photoscan: ply 2.00 MB
    Stereolithography: stl 1.82 MB
    STEP: step 240.44 kb
    3DS MAX all ver.: 3ds 971.59 kb
    Wavefront OBJ: obj 2.92 MB
  • Model animowany:
    No
  • Tekstury:
    No
  • Oparty na szkielecie:
    No
  • Materiał:
    No
  • Low-poly:
    No
  • Kolekcja:
    No
  • UVW mapping:
    No
  • Plugins Used:
    No
  • Gotowy do wydruku:
    No
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Geometria:
    Polygonal
  • Unwrapped UVs:
    Unknown
  • Liczba wyświetleń:
    3805
  • Data:
  • ID produktu:
    369462
  • Oceny:
Zgłoś ten produkt
Hello everyone, the previous model had some problems and didn't work correctly, I modified the model and tested the model after printing, it works great, and you can now download this Iris and be sure that the function works correctly.
Thanks for helping me to solve the problems of my design.
regards

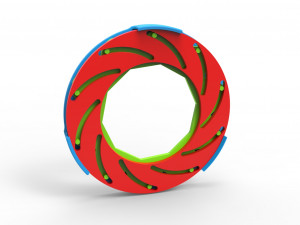

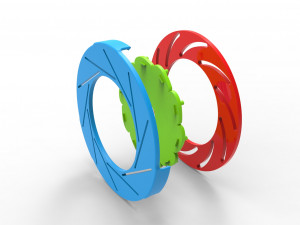

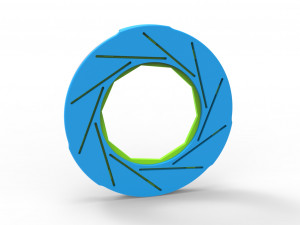

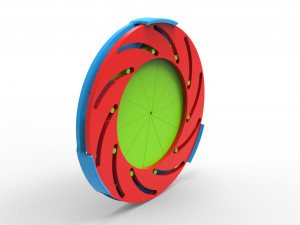

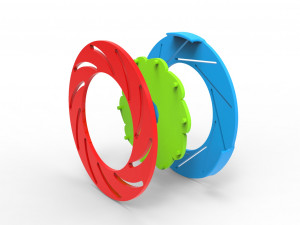

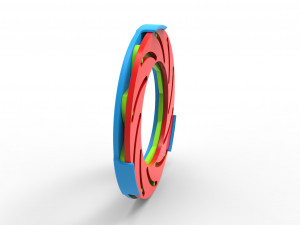

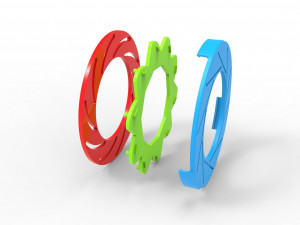

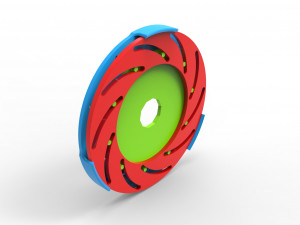

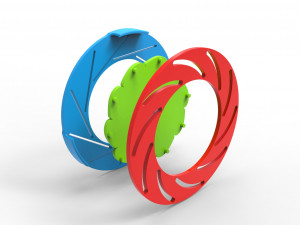

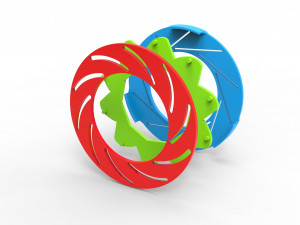

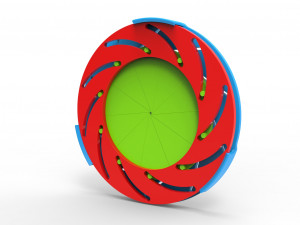

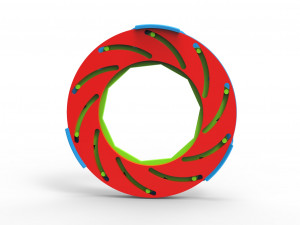

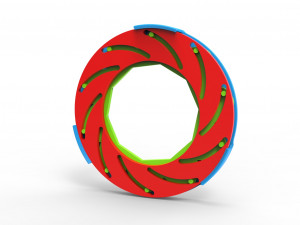

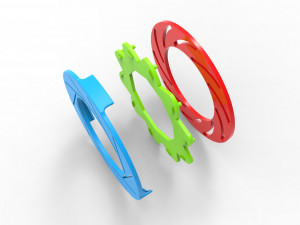

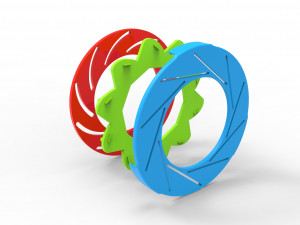

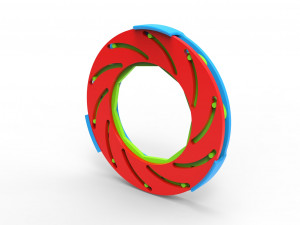

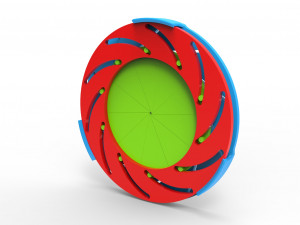

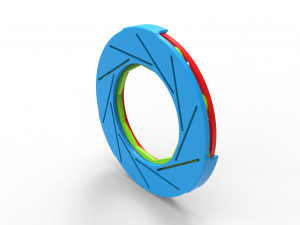

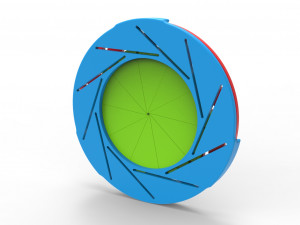

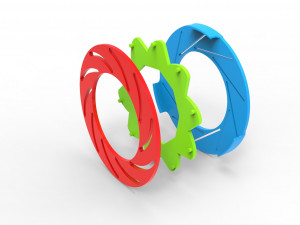

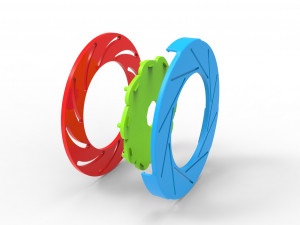

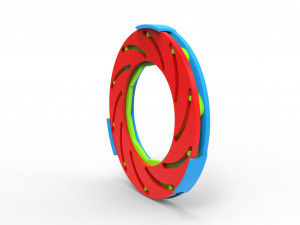

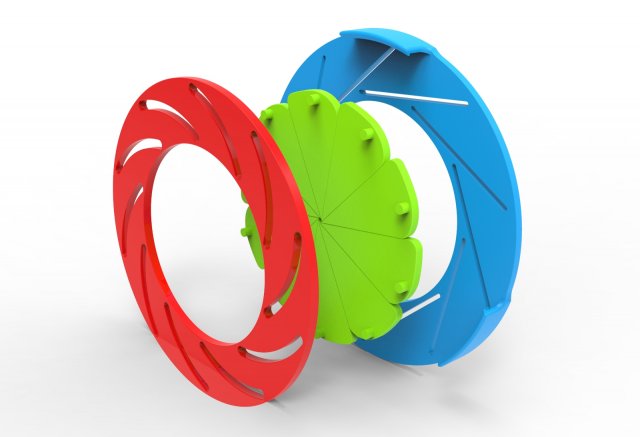

This is an adjustable iris diaphragm mechanism used in many products specially in every camera, it smoothly opens and closes the vent of light and arranges the photo light.
It can be used in another product or your creation, it is designed for 3dprinting and it has a .2 mm gap between two moveable components.
I don't recommend rescale it much, it may cause loss of functionality.
you can order your iris diaphragm, I'll make it ASAP with the specific measurement.
enjoy it.

you can see the 3d printed model from link below:
https://youtube.com/shorts/4vvx9HiNQnc?feature=share

the ring has 110mm outer diameter and each component has 1.25mm thickness. Gotowy do wydruku: Nie
